DESCRIPTION

Basic Info.

Model NO.	AWS A5.20 E71T-1C
Protective Gas	CO2
Certificate	ABS, ISO, CE, CCS, TUV, Lr, Gl, BV, Nk, etc.
Current Reference	DC
Model	Aws A5.20 E71t-1c
Transport Package	15kg/Roll, 1000kg/Pallet
Specification	Diameter: 0.9mm
Trademark	TOKO
Origin	China
HS Code	8311200000
Production Capacity	800 Tons Per Month

Product Description

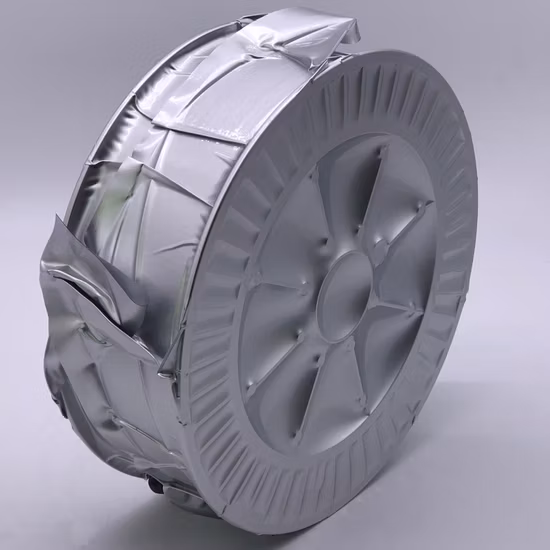

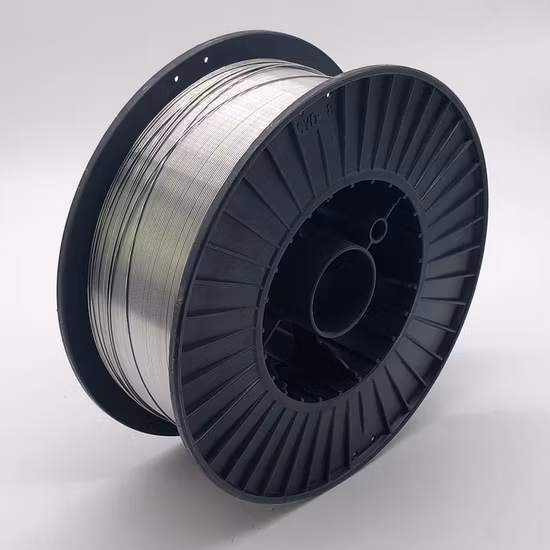

TOKO Brand E71T-1C Flux Cored Welding Wire
Company IntroductionTOKO Welding LLC produce and export Welding Electrodes (includes: Carbon steel welding rods, stainless steel welding rods and copper alloy welding rods);Hope we could establish a long term mutual-beneficial relationship.
AWS A5.20 E71T-1C is formulated to deposit x-ray quality welds in flat, vertical up, horizontal, or overhead positions. E71T-1 is designed for welding low carbon and mild steel, structural and pressure vessel grades. E71T-1 flux core ingredients produce a fast freezing slag that facilitates out of position welds. Bead contour is flat to slightly convex. Slag is easily to remove and low spatter provides easily post weld cleaning. Chemical Composition (%)

Item	C	Mn	Si	P	S	Cr	Ni	Mo	V	Cu
Standard	≤0.18	≤1.75	≤0.90	≤0.03	≤0.03	≤0.20	≤0.50	≤0.30	≤0.08	≤0.35

Mechanical Properties:

Item	Yeild Point (MPa)	Tensile Strength (MPa)	Elongation (%)	Test Temp (oC)	Impact Energy	Average (J)
Standard	≥400	≥480	≥20	-20	≥27

Recommended Current (DC+) & Voltage Range

Welding Position	1.2MM			1.6MM
	Current Range	Voltage Range	CO2 Range	Current Range	Voltage Range	CO2 Range
Flat	120-230 A	16-34V	15-25L/Min	180-400A	22-42V	15-25L/Min
Horizontal	120-280A	16-29V	15-25L/Min	180-400A	22-42V	15-25L/Min
Overhead	120-240A	16-28V	15-25L/Min
Vertical Up	120-240A	16-27V	15-25L/Min	180-260A	23-30V	15-25L/Min
Vertical Down	120-260A	16-29V	15-25L/Min	180-260A	23-30V	15-25L/Min

Shielding Gas: 100% CO2 OR 75% Ar / 25% CO2;Diameter: 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.4mm, 1.6mm
Photo:
